What is a Mil-dot Reticle and Why is it Useful?
๐ด State the Question Clearly:
What exactly is a mil-dot reticle, and how does it help a shooter?
โ Provide the Direct Answer Immediately:
A mil-dot reticle is a specific type of crosshair in a rifle scope that features a series of precise, uniformly spaced dots along the vertical and horizontal axes. Its primary purpose is to allow a shooter to estimate the range to a target of a known size and to compensate for bullet drop and wind drift without adjusting the scope's turrets.
โ๏ธ Structured Elaboration:
The functionality of a mil-dot reticle is based on a unit of angular measurement called a milliradian (mil). Hereโs how it works in practice:
- Range Estimation: If you know the approximate height or width of your target (e.g., a standard 18-inch-wide silhouette target), you can measure how many dots it spans in your reticle. A simple mathematical formula then allows you to calculate the distance to that target with considerable accuracy.
- Holdover (Bullet Drop): Once you know the range and the ballistics of your ammunition, you can use the vertical dots as aiming points to compensate for the natural drop of the bullet over distance. Instead of aiming directly at the target, you "hold over" by aiming with a lower dot.
- Windage (Wind Drift): Similarly, the horizontal dots allow you to aim into the wind to compensate for it pushing your bullet off course. This is known as "holding for wind."
๐ Back It Up with Expertise & Data:
A milliradian is 1/1000th of a radian. At a distance of 1000 meters, one mil represents exactly one meter of height or width. This simplifies to a more practical rule: at 100 yards, one mil equals 3.6 inches. The space between the center of one dot and the center of the next is one milliradian. By understanding this constant angular measurement, shooters can apply a formula (Target Size in Inches รท Mils Read) x 27.77 = Range in Yards) to reliably determine distance, a critical factor for making an accurate shot at extended ranges. This system is a standardized and proven method used by civilian marksmen worldwide.
๐ Conclude with a Summary:
In short, a mil-dot reticle transforms a simple aiming point into a sophisticated measurement tool, empowering shooters to calculate range and make precise aiming adjustments for bullet drop and wind without touching their scope's adjustment knobs.
Deep Dive: The EZSHOOT 2.5-10x50 AO Rifle Scope
Understanding the principles is one thing; seeing them executed in a practical, accessible tool is another. The EZSHOOT 2.5-10x50 AO Rifle Scope serves as a perfect example of how these advanced features are integrated into an optic designed for real-world use by discerning shooters.

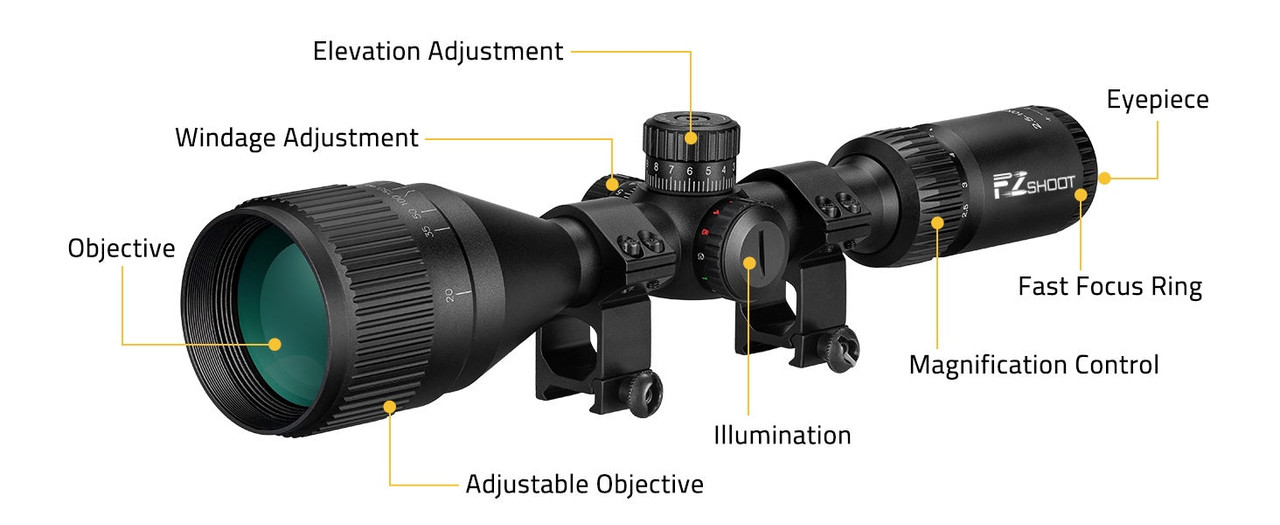

Key Features & User Benefits

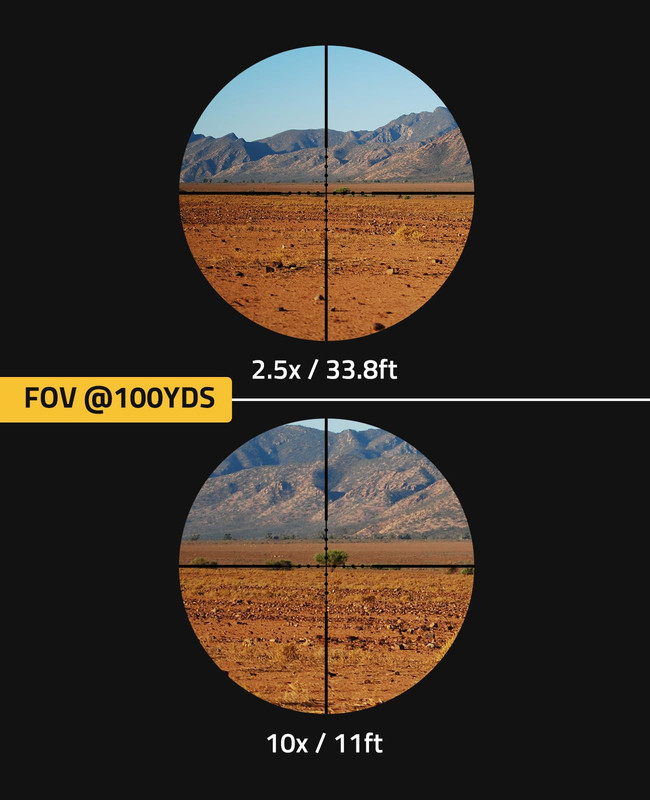

- ๐น Versatile 2.5-10x Magnification Range: This range offers exceptional flexibility. At 2.5x, you have a wide field of view, perfect for tracking moving targets or for close-to-medium range shooting. Cranking it up to 10x provides the magnification needed for precise shot placement on targets at several hundred yards. This makes it suitable for both dense woods and open field applications.
- ๐ฆ Large 50mm Objective Lens: The objective lens is the front glass of the scope. A larger lens, like this 50mm one, gathers more light. The direct benefit is a brighter, clearer image, especially during critical dawn and dusk hours when game is most active.
- โ๏ธ Adjustable Objective (AO): Parallax is an optical illusion where the reticle appears to shift on the target when you move your eye. An Adjustable Objective allows you to focus the scope precisely at a specific distance, eliminating parallax error and ensuring your point of aim is your true point of impact. For a precision-oriented reticle like a mil-dot, this is a critical feature.

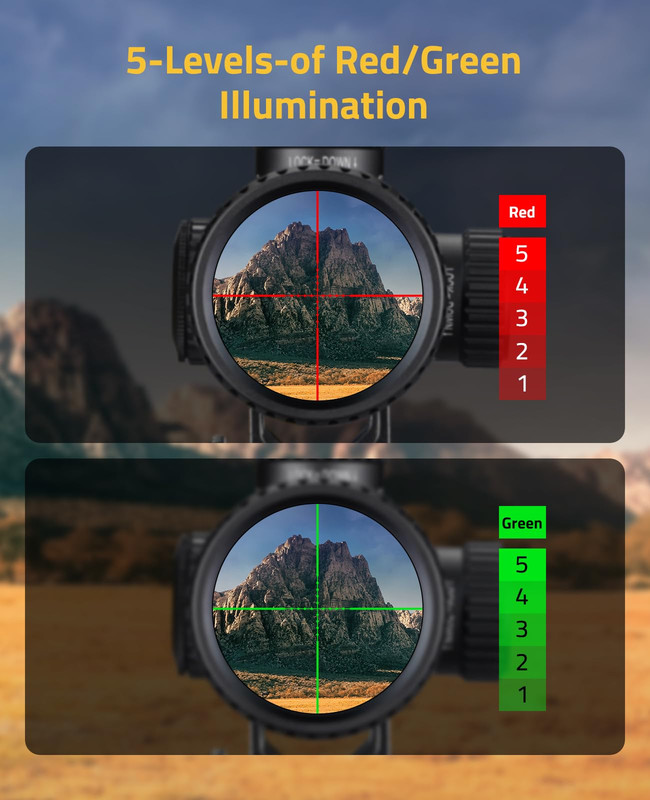

- ๐ด Red & Green Illuminated Reticle: In low light or against a dark target, a standard black reticle can disappear. This scope offers 5 levels of red and green illumination, allowing the crosshairs to stand out clearly without washing out the target. This significantly enhances target acquisition speed and confidence in challenging light.
- ๐ง IPX7 Waterproof & Fog-Proof: The scope tube is nitrogen-purged and O-ring sealed. This prevents internal fogging during temperature changes and makes it fully waterproof, capable of being submerged in one meter of water for 30 minutes. This means reliable performance, rain or shine.
What Actually Matters Beyond the Specs
A spec sheet can tell you what a scope has, but not how it feels or performs. For the budget-conscious shooter, real-world reliability is paramount. The EZSHOOT 2.5-10x50 is built from a single piece of aircraft-grade aluminum, providing a robust and shockproof housing that can handle the recoil of common hunting calibers. The turrets provide tactile, audible clicks, making zeroing a straightforward process. The glass, while not at the level of four-figure European optics, is fully multi-coated, which significantly reduces glare and improves light transmission, resulting in a sight picture that is surprisingly crisp and bright for its category.
.jpg)
Scenario-Based Applications
๐น Varmint & Predator Hunting
Small targets at varying distances require precision. The 10x magnification allows for positive identification and a fine aiming point. The mil-dot reticle is invaluable for quickly estimating the range to a coyote or groundhog, and the AO ensures your shot is parallax-free, which is critical for hitting a small vital zone.
๐ฏ Range Day & Target Practice
For shooters looking to hone their skills, this scope is an excellent learning tool. You can practice range estimation on steel targets of known sizes, learn to use holdovers for different distances, and see the immediate benefit of a clear, parallax-free image. The 2.5-10x range is ideal for standard 100 to 300-yard ranges.
Pro Tips & Common Mistakes
- โ๏ธ Tip: Correctly Set Your AO. Before you shoot, dial the Adjustable Objective to the number that matches your target's range. If the range is unknown, look through the scope and adjust the AO until the target image is perfectly sharp and crisp. Then, move your head slightly side-to-side; if the reticle stays fixed on the target, your parallax is eliminated.
- ๐ด Mistake: Misunderstanding a Second Focal Plane (SFP) Reticle. This scope, like most in its class, has a Second Focal Plane reticle. This means the reticle size stays the same regardless of magnification. Crucially, the mil-dot measurements are only accurate at one specific magnification level, which is typically the highest setting (10x on this scope). Using the mil-dots for ranging at 5x, for example, will result in incorrect calculations.
- โ๏ธ Tip: Use a Ballistics App. To get the most out of the mil-dot reticle, use a ballistics calculator app on your smartphone. Input your ammunition data, and it will tell you exactly how many mils to hold over for any given distance, taking the guesswork out of long-range shots.
Decision Summary: EZSHOOT 2.5-10x50 AO Mil-Dot Scope
Key Specs
- Magnification: 2.5-10x
- Objective Lens: 50mm
- Reticle: Mil-Dot, Red/Green Illuminated
- Focal Plane: Second (SFP)
- Parallax Adjustment: Adjustable Objective (AO)
- Waterproofing: IPX7
Best For
- New Rifle Owners
- Budget-Conscious Hunters
- Range/Target Shooters
- Rimfire & Centerfire Rifles
Pros
- Excellent feature set for the price
- Bright image due to 50mm lens
- Versatile magnification range
- Parallax adjustment increases precision
- Illuminated reticle for low light
Cons
- SFP reticle requires use at max power for ranging
- Heavier than non-AO, smaller objective scopes
Use code SALEsp20 for an extra 20% OFF your order!
Real User Feedback
"I put this on my .223 bolt action for coyote hunting. I was skeptical because of the price, but it holds zero perfectly. The glass is way clearer than I expected, and the illuminated reticle is a must-have for early morning hunts. The AO focus makes a huge difference at 200 yards. Can't beat it for the money."
"As someone new to long-range shooting, the mil-dot reticle was intimidating at first. But this scope made it easy to learn. I zeroed it at 100 yards, and by using the dots for holdover, I was hitting steel at 300 yards consistently by the end of the day. Solid build, clear adjustments."
Frequently Asked Questions (FAQ)
๐ด What does 2.5-10x50 mean on a rifle scope?
โ The numbers 2.5-10x50 on a rifle scope describe its magnification range and its objective lens diameter. Specifically, "2.5-10x" means the scope has a variable magnification that can be adjusted from a minimum of 2.5 times the normal view to a maximum of 10 times. The "50" indicates that the objective lens (the front lens) has a diameter of 50 millimeters.
โ๏ธ Structured Elaboration:
- 2.5-10x (Magnification): This range defines the scope's versatility. The lower end (2.5x) provides a wide field of view for quick target acquisition at closer ranges, while the higher end (10x) allows for detailed viewing and precise aiming at longer distances.
- 50 (Objective Lens Diameter): This number, measured in millimeters, dictates the scope's light-gathering capability. A larger objective lens can transmit more light to the user's eye, resulting in a brighter and clearer image, especially in low-light conditions like dawn or dusk.
๐ Back It Up with Expertise & Data:
The physics of optics dictates that the exit pupilโthe small circle of light that appears in the eyepieceโis calculated by dividing the objective lens diameter by the magnification (e.g., 50mm / 10x = 5mm exit pupil). A larger exit pupil transmits more light to the human eye (which can dilate to about 7mm in low light), directly improving perceived brightness. Therefore, a 50mm objective lens offers a significant advantage over smaller 32mm or 40mm lenses in low-light performance.
๐ Conclude with a Summary:
In essence, "2.5-10x50" signifies a versatile scope with a flexible magnification range for various distances and a large objective lens designed for superior brightness and clarity.
๐ด What is the purpose of an Adjustable Objective (AO) on a scope?
โ The primary purpose of an Adjustable Objective (AO) on a rifle scope is to eliminate parallax error. It also functions as a fine-tuning focus mechanism to ensure the target image is perfectly sharp at the same optical plane as the reticle, which is critical for precision shooting.
โ๏ธ Structured Elaboration:
- Parallax Elimination: Parallax is an apparent shift of the reticle over the target when the shooter's eye moves off-center from the eyepiece. This causes the point of aim to differ from the point of impact. The AO adjusts the scope's focus so the target and reticle are on the same focal plane, making the reticle appear "stuck" to the target regardless of eye position.
- Fine Image Focusing: By adjusting the AO to the specific distance of your target (e.g., 100 yards, 200 yards), you ensure the target image is as crisp and detailed as possible, which aids in precise shot placement.
๐ Back It Up with Expertise & Data:
Most non-AO rifle scopes have their parallax set at a fixed distance, often 100 or 150 yards. At distances significantly shorter or longer than this fixed setting, parallax error becomes a noticeable factor that can cause missed shots, especially with higher magnification. An AO mechanism, typically located on the objective bell of the scope, allows the user to adjust this setting from as close as 10-15 yards out to infinity, providing a crucial advantage for accuracy at any range. For more technical details on this optical principle, see the explanation on parallax in sights.
๐ Conclude with a Summary:
Ultimately, an Adjustable Objective is a key feature for precision shooting that removes parallax error and provides a sharper target image, ensuring that where you aim is exactly where the bullet will go.
๐ด Is a Mil-dot reticle good for hunting?
โ Yes, a mil-dot reticle is very effective for hunting, particularly in situations where shots may be taken at varying and unknown distances. It provides the hunter with the tools to quickly estimate range and compensate for bullet drop and wind without needing to adjust the scope's turrets.
โ๏ธ Structured Elaboration:
- Range Finding: A hunter can use the mil-dots to bracket a deer's body (average 18" from back to belly) or other game to estimate the distance, which is more reliable than guessing.
- Ethical Shots: By allowing for precise holdovers, the mil-dot reticle helps hunters make more accurate shots, leading to ethical and quick harvests.
- Wind Compensation: In open country where wind is a major factor, the horizontal dots provide clear reference points for aiming into the wind.
๐ Back It Up with Expertise & Data:
While a simple duplex reticle works well for many hunters at common distances (under 200 yards), the mil-dot system offers a distinct advantage for ethical long-range hunting. Knowing the exact holdover for a 350-yard shot, versus guessing, can be the difference between a clean kill and a wounded, lost animal. The system's mathematical precision removes ambiguity, which is why it was adopted for and law enforcement applications before becoming popular with civilian hunters.
๐ Conclude with a Summary:
For hunters who want to extend their effective range and make more precise, ethical shots, the mil-dot reticle is an excellent and highly functional tool.
๐ด What is IPX7 waterproofing?
โ IPX7 is a standardized rating that indicates a device is waterproof and can be submerged in water up to 1 meter deep for a duration of 30 minutes without any water ingress. For a rifle scope, this rating ensures it will remain functional and clear even in heavy rain, snow, or if accidentally dropped in water.
โ๏ธ Structured Elaboration:
- IP Rating System: The "IP" stands for Ingress Protection. The first digit rates protection against solids (like dust), and the second digit rates protection against liquids. The 'X' in IPX7 means it has not been tested for solid particle protection.
- Level 7 Liquid Protection: This is a high level of water protection, signifying that the internal components are sealed against significant water exposure.
- How it's Achieved: In optics, IPX7 is achieved by using high-quality rubber O-ring seals at all junction points (turrets, lenses, eyepiece) and by purging the internal tube with an inert gas like nitrogen or argon to create positive pressure and prevent moisture from entering.
๐ Back It Up with Expertise & Data:
The Ingress Protection (IP) ratings are an international standard (IEC 60529) used to define the levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies and moisture. An IPX7 rating is a verifiable benchmark that guarantees a product has been tested to withstand specific, harsh water conditions, offering users confidence in its all-weather reliability. It is a significant step up from ratings like IPX4 (splash resistant) or IPX6 (resistant to powerful water jets).
๐ Conclude with a Summary:
In short, an IPX7 rating on a rifle scope means it is fully waterproof for submersion up to 1 meter for 30 minutes, making it a reliable tool for any weather condition a hunter or shooter might face.
๐ด Do I need an illuminated reticle?
โ While not strictly necessary for all shooting, an illuminated reticle is a highly valuable feature, especially for hunting in low-light conditions or for shooting at targets in deep shadow. It ensures your reticle remains visible against a dark background, preventing it from getting lost and allowing for faster and more confident target acquisition.
โ๏ธ Structured Elaboration:
- Low-Light Advantage: During the crucial first and last 30 minutes of daylight, a black reticle can easily blend in with a dark target or shadowy background. Illumination makes the crosshair "pop," providing a distinct aiming point.
- High-Contrast Scenarios: Even in bright daylight, if you are aiming from a bright area into a dark, shaded one (like a treeline), an illuminated reticle can significantly improve visibility.
- Adjustable Brightness: Quality illuminated scopes offer multiple brightness settings. This is key because a setting that is too bright can create glare and wash out the target image. Lower settings are used to provide a subtle, clear aiming point without overwhelming the eye.
๐ Back It Up with Expertise & Data:
The effectiveness of an illuminated reticle is tied to the human eye's response to light. In low-light, the pupil dilates to let in more light, but this can make it harder to focus on a thin, non-illuminated crosshair. A gently illuminated reticle provides a point of focus that the eye can lock onto quickly without causing the pupil to constrict. For this reason, it is a standard feature on many tactical and premium hunting scopes.
๐ Conclude with a Summary:
An illuminated reticle is a significant quality-of-life and performance enhancement, providing a critical advantage in low-light and high-contrast situations where a standard black reticle might fail.
Conclusion: The Smart Choice for Precision and Value
Choosing your first or next rifle scope doesn't have to be a compromise between features and cost. The EZSHOOT Mil-dot Reticle 2.5-10x50 AO scope demonstrates that a versatile magnification range, a light-gathering 50mm objective, and precision features like a mil-dot reticle and parallax adjustment are within reach for every shooter. It's an intelligent optical system designed not just to meet expectations, but to provide the tools needed to grow your skills and confidence in the field or at the range.
If you're a new rifle owner or a seasoned shooter looking for maximum performance without the premium price, this scope represents one of the best values on the market today. For more information or to read our other optics guides, visit our blog.
Don't forget to use code SALEsp20 for an exclusive 20% discount!
